华为P30pro手机电路原理图纸
品牌 华为Huawei
型号 P30Pro
图纸类型 手机图纸
图纸内容 手机电路图
图纸格式 PDF
1. Contents
2. Blank
3. SOC PWR1
4. SOC PWR2
5. SOC PWR3
6. SOC HS Interface
7. SOC GPIO Interface
8. SOC RF Interface
9. SOC GND & NC
10. Hi6421 LDO
11. Hi6421 BUCK
12. Hi6421 DIGITAL INTERFACE
13. Hi6422V320
14. UFS and LPDDR4X
15. Battery & Fuel gauge
16. Charge Management
17. TFT LCD Interface
18. Direct Charge LoadSwitch
19. Flash LED&TCAM
20. Camera Interface
21. TYPEC INTERFACE
22. Codec HI6403
23. MIC/VIB
24. Headphone
25. SMART PA

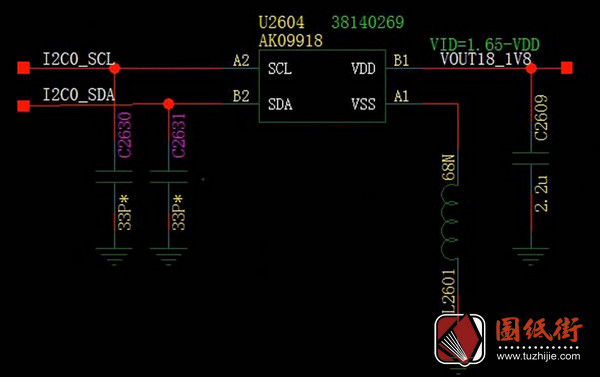

26. X-Sensor
27. IRDA
28. SIM Card NANO SD
29. FPC Interface
30. Test Point/Shielding
MODEM Schematic
31. RF Interface
32. RF PMU
33. RF Transceiver_HI6363_01
34. SKY78113_ULTRA2.5_LB
35. SKY78114_ULTRA2.5_MB
37. GPA
36. SKY78117_ULTRA2.5_HB
42. DRX LNA Band –6H02
41. DRX_LB
40. DPX MHB
39. PRX LNA-6H01
38. RF Front End Switch
43. DRX2 MIM0
44. DRX3 MIM0
45. RF Transceiver_HI6363 _02
46. B42/B46 TRX
47. B42 DRX
48. Reserved
49. Reserved
50. Reserved
53. Reserved
52. 1103 POWER
51. 1103 BB
54. WIFI RF0
56. GPS
55. WIFI RF1
57. NFC BB
58. ANT5/6/9/ GPS/WIFI ANT
59. ANT3/4 DIV ANT /ANT FPC
60. ANT Tuner
2、请认真查看并核实主板版号及版本号后和本站提供的图纸进行比对；
3、原理图等PDF格式的图纸及资料本站提供了部分预览，请放大后进行核对（如果无法预览请点击鼠在线预览下方的View Fullscreen即可）；点位图等提供截图以便核对；
4、不确定时请联系本站QQ客服
2、点位图根据格式选择相应的软件，请访问点位图软件进行下载。
